Thông số kỹ thuật
| Sản phẩm | Bo mạch chủ |
| Tên Hãng | MSI |
| Model | PRO Z690-A WIFI DDR5 |
| CPU hỗ trợ | Intel |
| Chipset | Z690 |
| RAM hỗ trợ | 4x DDR5 memory slots, supporting up to 192GB 1 Supports 1R 5600 MHz (by JEDEC & POR) Max overclocking frequency: 1DPC 1R Max speed up to 6400+ MHz 1DPC 2R Max speed up to 6000+ MHz 2DPC 1R Max speed up to 6000+ MHz 2DPC 2R Max speed up to 5600+ MHz Supports Intel® XMP 3.0 OC Supports Dual Controller Dual-Channel mode Supports non-ECC, un-buffered memory |
| Khe cắm mở rộng | 3 x PCI-E X16, 1 x PCI-E X1, |
| Ổ cứng hỗ trợ | 6x SATA 6Gb/s ports (from Z690 chipset) 4x M.2 slots (Key M) M2_1 slot (from CPU) Supports PCIe 4.0 x4 Supports 2242/ 2260/ 2280/ 22110 storage devices M2_2 slot (from Z690 chipset) Supports PCIe 4.0 x4 Supports 2242/ 2260/ 2280 storage devices M2_3 slot (from Z690 chipset) Supports PCIe 3.0 x4 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices M2_4 slot (from Z690 chipset) Supports PCIe 4.0 x4 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices Intel® Optane™ Memory Ready for M.2 slots that are from Z690 Chipset Support Intel® Smart Response Technology for Intel Core™ processors |

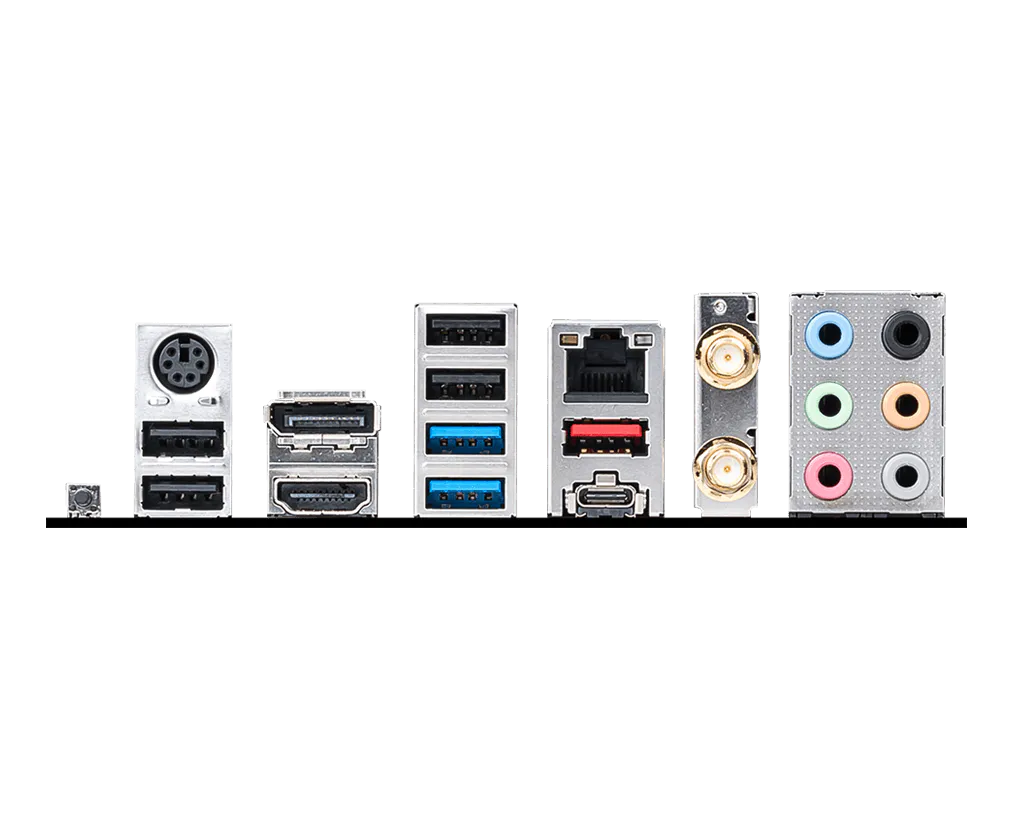

| Cổng kết nối (Internal) | Keyboard / Mouse DisplayPort USB 2.0 LAN port WIFI / Bluetooth Audio connector Flash BIOS Button USB 2.0 HDMI™ USB 3.2 Gen 1 5Gbps Type-A USB 3.2 Gen 2×2 20Gbps Type-C USB 3.2 Gen 2 10Gbps Type-A |
| LAN / Wireless | 1x Intel® I225-V 2.5Gbps LAN controller
Intel® Wi-Fi 6E |
