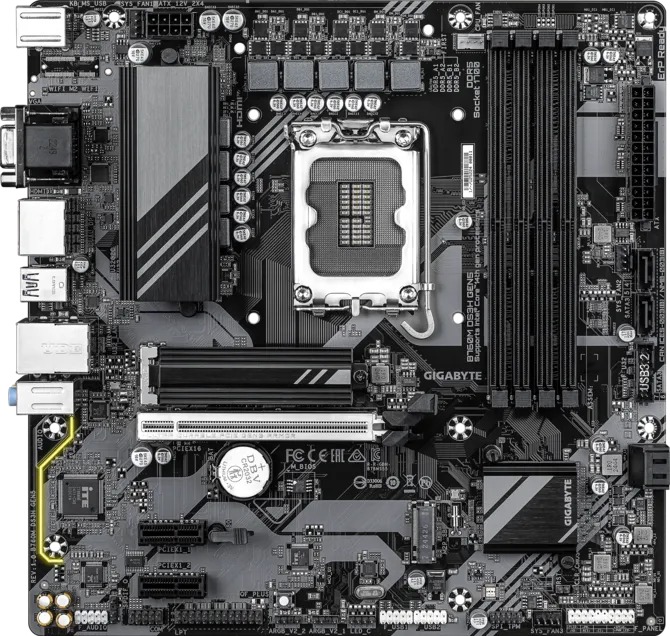

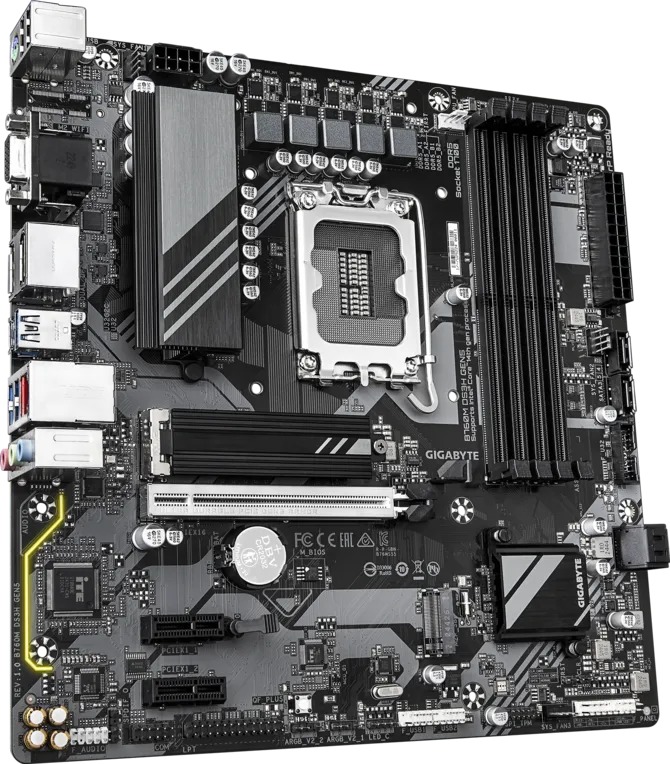

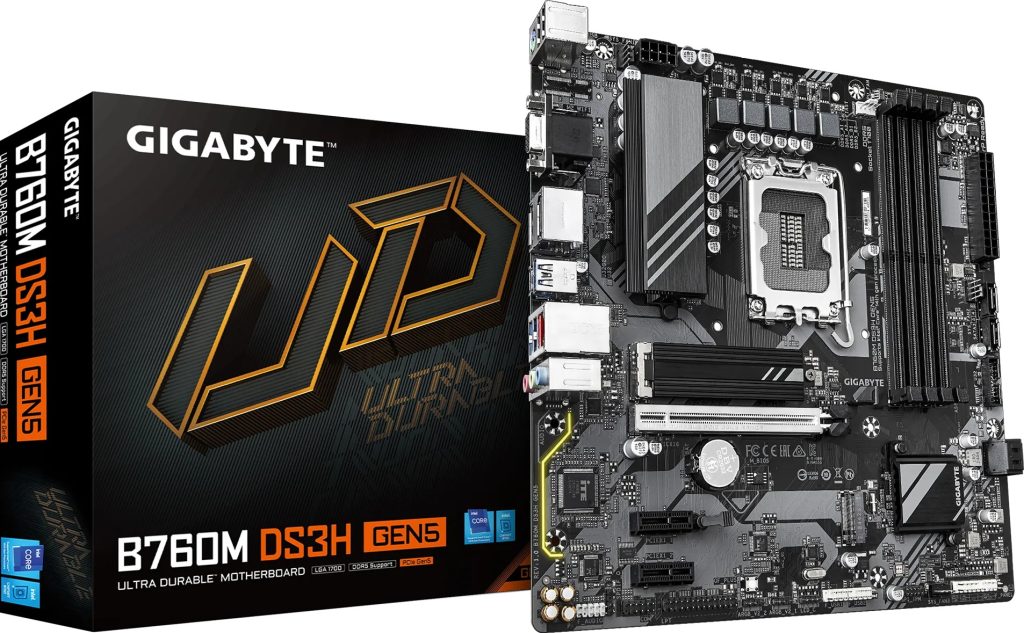

Bo Mạch Chủ Gigabyte B760M DS3H GEN5

– Support for DDR5 5600/5200/4800/4400 MT/s memory modules

13th Generation Intel® Core™ i5/i3 and 12th Generation Intel® Core™, Pentium®Gold and Celeron® Processors:

– Support for DDR5 4800/4400 MT/s memory modules

4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory

Dual channel memory architecture

– 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)

Chipset:

– 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)

– 4 x SATA 6Gb/s connectors

RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

– 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16

(The PCIEX16 slot can only support a graphics card or an NVMe SSD).

Chipset:

– 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1

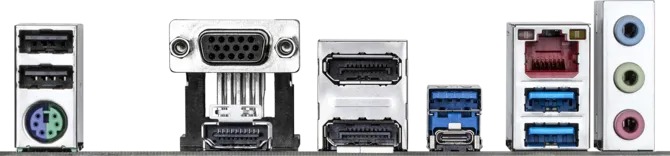

1 x PS/2 keyboard/mouse port

1 x D-Sub port (Note)

1 x HDMI port (Note)

2 x DisplayPorts (Note)

3 x USB 3.2 Gen 1 ports

1 x USB Type-C® port, with USB 3.2 Gen 2 support

1 x RJ-45 port

3 x audio jacks

– 1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz

– 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz

– 1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz

– 1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz
