Thông số kỹ thuật
| Chipset | AMD A520 |
| Socket | Socket AM4 |
| Kích thước Main | M-ATX |
| Hỗ trợ CPU | Supports AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series and 3000 G-Series processors |
| Khe cắm RAM | 2 khe ram |
| Loại RAM | DDR4 |
| Bus RAM hỗ trợ | 2x DDR4 memory slots, support up to 64GB 1
Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400/ 4600+ MHz by A-XMP OC MODE |
| Chi tiết Vga | 1x HDMI™ 2.1 port, supports a maximum resolution of 4096×2160 @60Hz12
Support HDCP 1.4 & 2.3 1x DVI-D port, supports a maximum resolution of 1920×1200@60Hz1 Maximum shared memory of 16 GB |
| Kết nối mạng | 1Gb Ethernet |
| Thông số (Lan/Wireless) | Realtek®
RTL8111H Gigabit LAN |
| Khe cắm trong | 4x SATA 6Gb/s ports
1x M.2 slot (Key M) (from AMD Processor) Supports PCIe 3.0 x4 & SATA 6G/s with Ryzen™ 5000, 5000G, 4000G, 3000 and 3000G processors Supports SATA 6Gb/s with Athlon™ with Radeon™ Vega Graphics processors Supports 2242/ 2260/ 2280 storage devices |
| Khe cắm mở rộng | 1x PCIe 3.0 x16 slot (from AMD processor)1
Supports x16 speed with Ryzen™ 5000, 5000G, 4000G and 3000 processors Supports x8 speed with Ryzen™ 3000G processors Supports x4 speed with AMD® Athlon™ with Radeon Graphics processors 1x PCIe 3.0 x1 slot |

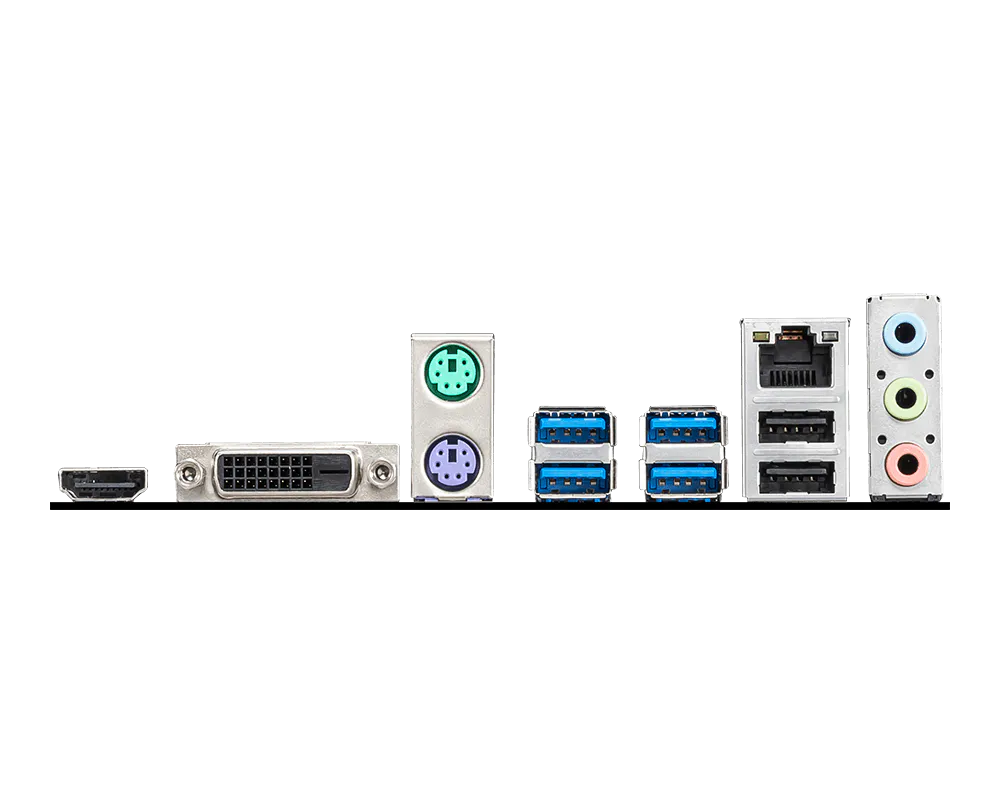

| Cổng giao tiếp ngoài | LAN port
HDMI™ DVI-D Keyboard / Mouse USB 3.2 Gen 1 5Gbps Type-A USB 3.2 Gen 1 5Gbps Type-A USB 2.0 Ports Audio Connectors |
| Âm thanh | 8-Channel (7.1) HD Audio with Audio Boost |
