Thông số kỹ thuật
| Tên Hãng | Gigabyte |

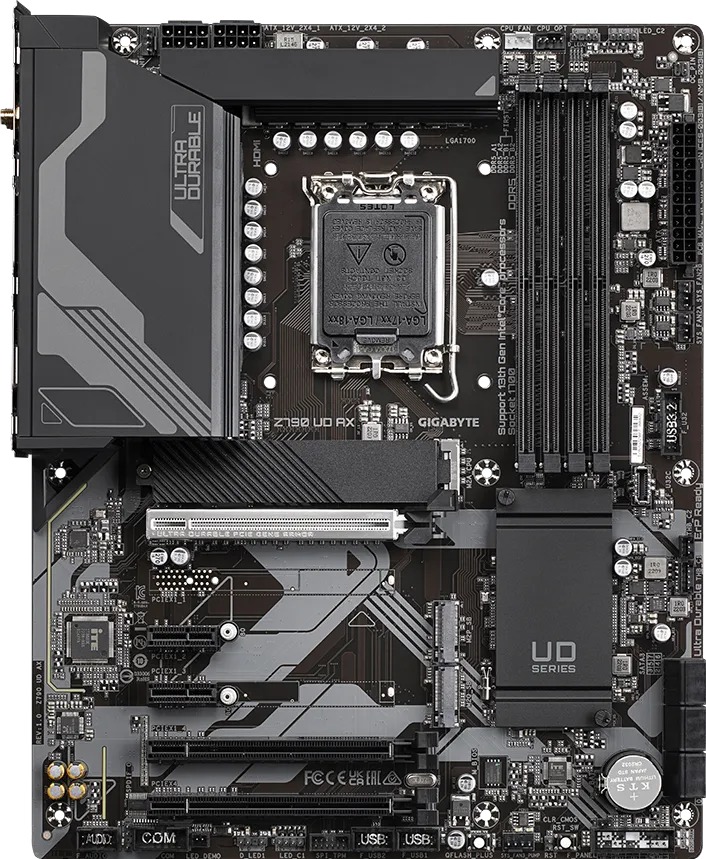

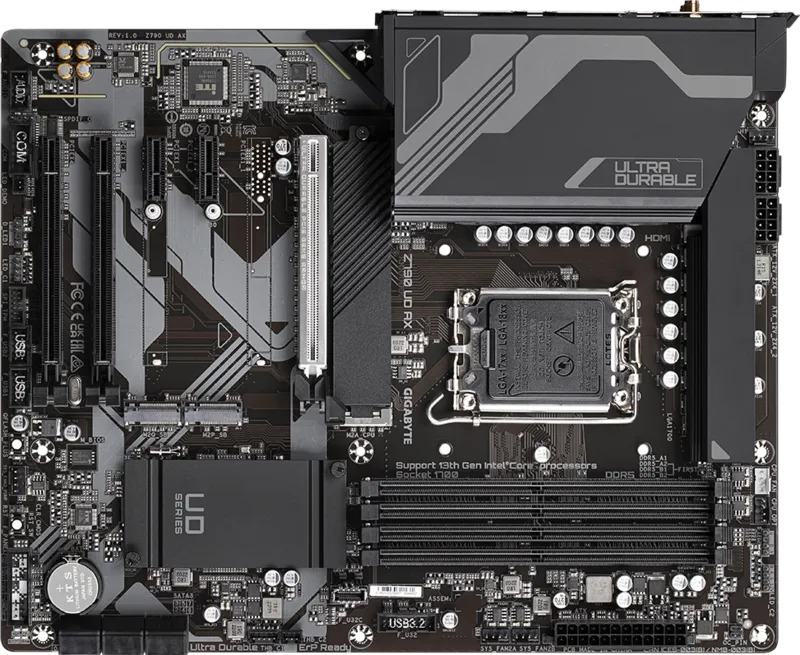

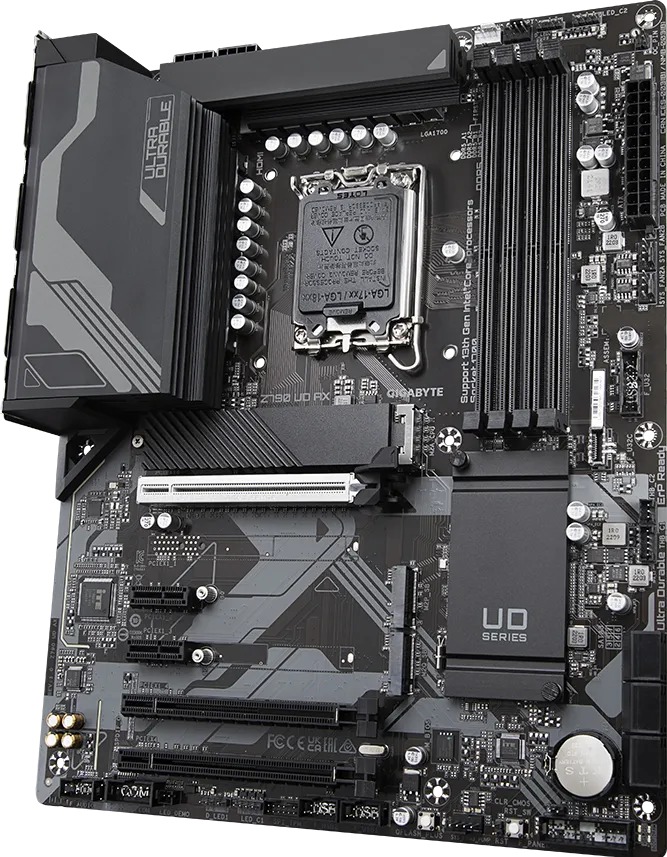

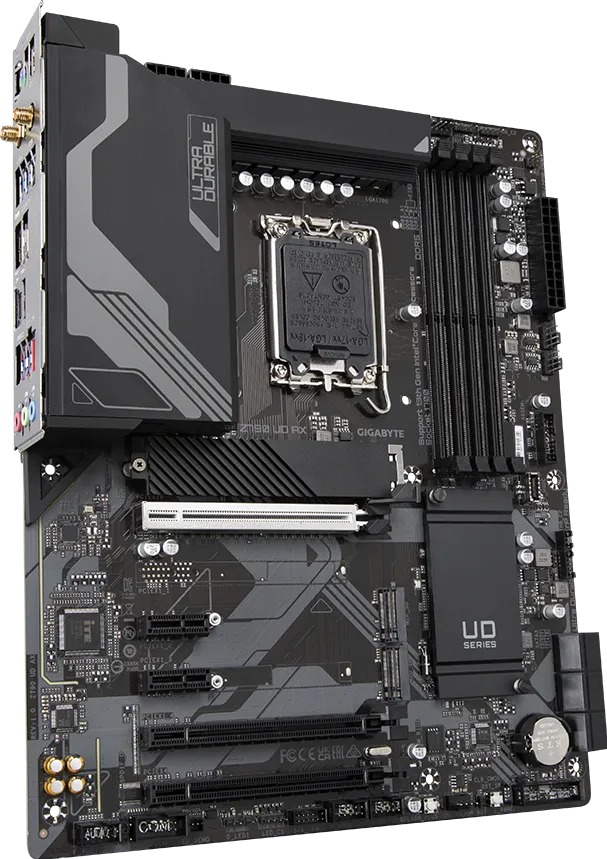

| Model | Z790 UD AX |
| CPU hỗ trợ | Intel |
| Chipset | Z790 |
| RAM hỗ trợ | Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 memory modules |
| 4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) | |
| Khe cắm mở rộng | CPU: |
| 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) | |
| Chipset: | |
| 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) | |
| 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x1 (PCIEX1_4) | |
| 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_2, PCIEX1_3) | |
| Ổ cứng hỗ trợ | CPU: |
| 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) | |
| Chipset: | |
| 2 x M.2 connectors (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB, M2P_SB) | |
| 6 x SATA 6Gb/s connectors | |
| Cổng kết nối (Internal) | 1 x 24-pin ATX main power connector |
| 2 x 8-pin ATX 12V power connectors | |
| 1 x CPU fan header | |
| 1 x water cooling CPU fan header | |
| 3 x system fan headers | |
| 1 x system fan/water cooling pump header | |
| 2 x addressable LED strip headers | |
| 2 x RGB LED strip headers | |
| 3 x M.2 Socket 3 connectors | |
| 6 x SATA 6Gb/s connectors | |
| 1 x front panel header | |
| 1 x front panel audio header | |
| 1 x S/PDIF Out header | |
| 1 x USB Type-C® header, with USB 3.2 Gen 1 support | |
| 1 x USB 3.2 Gen 1 header | |
| 2 x USB 2.0/1.1 headers | |
| 1 x serial port header | |
| 2 x Thunderbolt™ add-in card connectors | |
| 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) | |
| 1 x reset button | |
| 1 x Q-Flash Plus button | |
| 1 x reset jumper | |
| 1 x Clear CMOS jumper | |

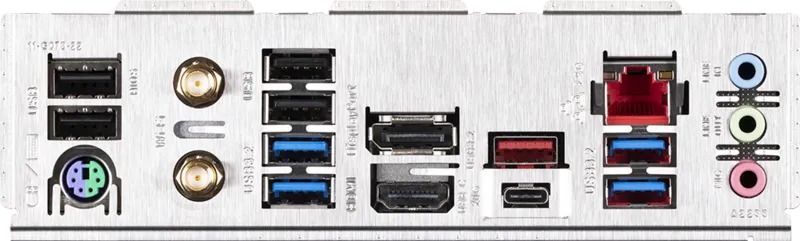

| Cổng kết nối (Back Panel) | 1 x USB Type-C® port, with USB 3.2 Gen 2×2 support |
| 1 x USB 3.2 Gen 2 Type-A port (red) | |
| 4 x USB 3.2 Gen 1 ports | |
| 4 x USB 2.0/1.1 ports | |
| 2 x SMA antenna connectors (2T2R) | |
| 1 x HDMI 2.0 port | |
| 1 x DisplayPort | |
| 1 x RJ-45 port | |
| 3 x audio jacks | |
| LAN / Wireless | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| AMD Wi-Fi 6E RZ616 (MT7922A22M) | |
| WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands | |
| BLUETOOTH 5.2 | |
| Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate | |
| Kích cỡ | ATX Form Factor; 30.5cm x 24.4cm |
