Thông số kỹ thuật
| Sản phẩm | Bo mạch chủ |
| Tên Hãng | GIGABYTE |

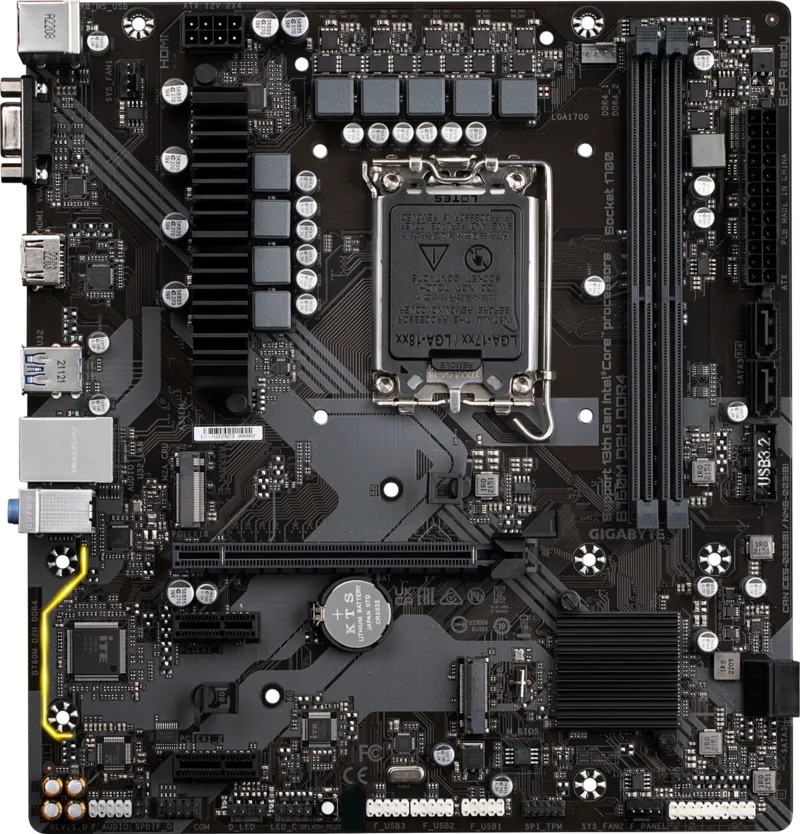

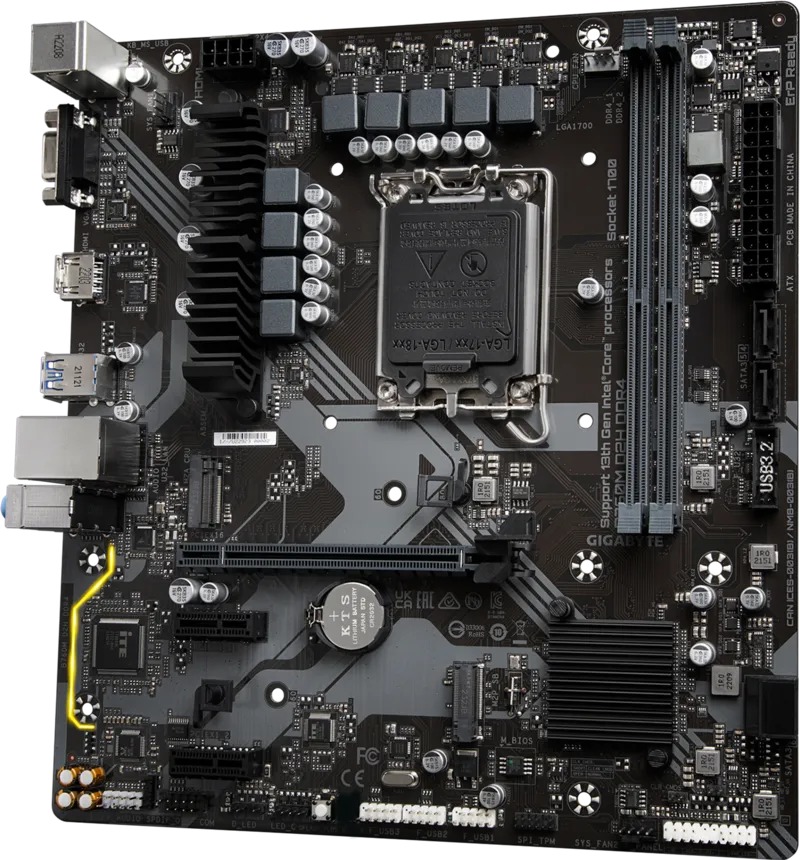

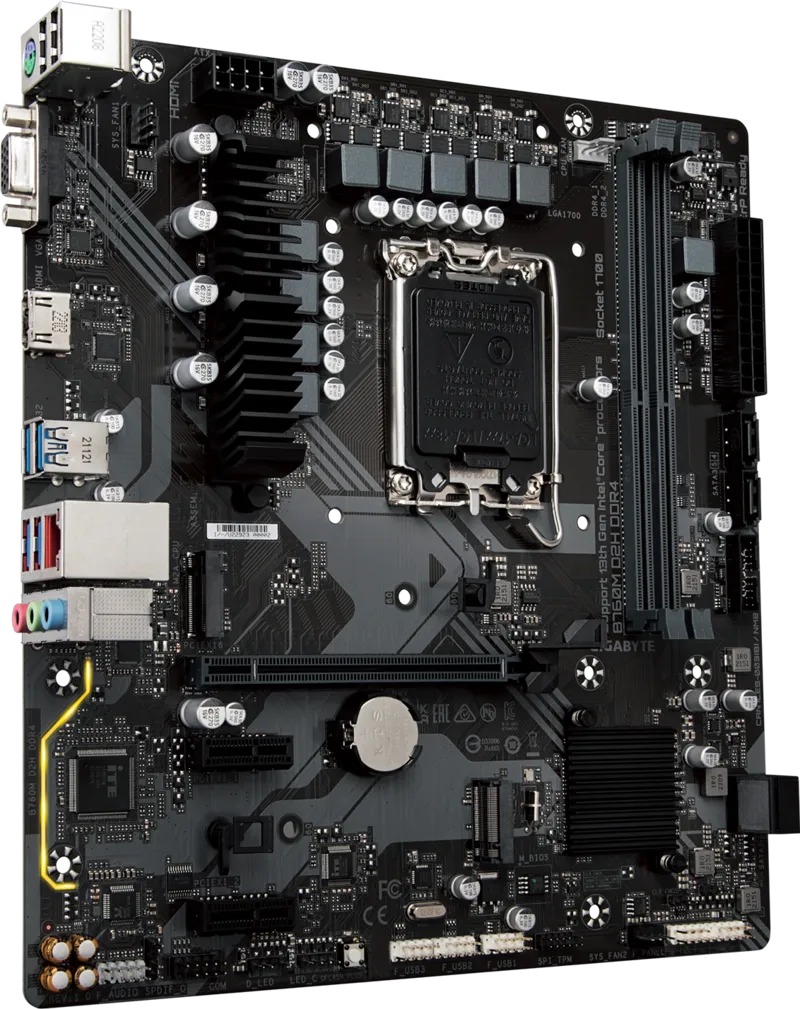

| Model | B760M D2H DDR4 |
| CPU hỗ trợ | Hỗ trợ cho thế hệ thứ 12 and 13 Intel® Core Socket LGA1700 |
| Chipset | B760 |
| RAM hỗ trợ | Support for DDR4 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MT/s memory modules2 x DDR4 DIMM sockets supporting up to 64GB (32 GB single DIMM capacity) of system memory |
| Khe cắm mở rộng | CPU:1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16Chipset:2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1 |
| Ổ cứng hỗ trợ | CPU:1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)Chipset:1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)4 x SATA 6Gb/s connectorsRAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
| Cổng kết nối (Internal) | 1 x 24-pin ATX main power connector1 x 8-pin ATX 12V power connector1 x CPU fan header2 x system fan headers1 x addressable LED strip header1 x RGB LED strip header2 x M.2 Socket 3 connectors4 x SATA 6Gb/s connectors1 x front panel header1 x front panel audio header1 x S/PDIF Out header1 x USB 3.2 Gen 1 header3 x USB 2.0/1.1 headers1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)1 x serial port header1 x Q-Flash Plus button1 x reset button1 x reset jumper1 x Clear CMOS jumper |

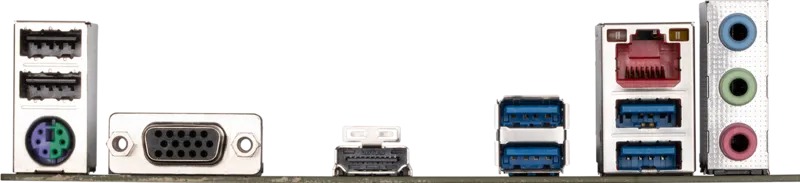

| Cổng kết nối (Back Panel) | 1 x PS/2 keyboard/mouse port1 x D-Sub port1 x HDMI port4 x USB 3.2 Gen 1 ports2 x USB 2.0/1.1 ports1 x RJ-45 port3 x audio jacks |
| LAN / Wireless | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Kích cỡ | Micro ATX Form Factor; 24.4cm x 22.5cm |
